Bài 2: Đại số Tuyến tính — Ngôn ngữ của Dữ liệu
Series: Toán học trong AI/ML & Deep Learning
Topics:
linear-algebramatrixSVDattentionembedding
🎯 Tại sao Đại số Tuyến tính quan trọng?
Mọi thứ trong AI đều là số được sắp xếp thành mảng nhiều chiều:
- Ảnh 256×256 RGB → tensor
(256, 256, 3) - Câu “Hello world” → ma trận embedding
(2, 512) - Batch 32 câu, mỗi câu 128 token, embedding 768 chiều → tensor
(32, 128, 768)
Đại số tuyến tính là bộ công cụ để thao tác hiệu quả với những cấu trúc này.

1. Các đối tượng cơ bản

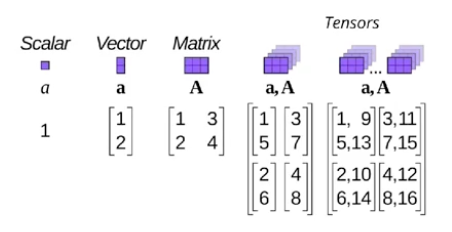

Scalar, Vector, Matrix, Tensor
Scalar Vector Matrix Tensor
5 [1,2,3] [[1,2], [[[...]]]
[3,4]] (3D+)
0D 1D 2D nD
import numpy as np
import torch
# Scalar — một số
s = 3.14
# Vector — 1D array
v = np.array([1.0, 2.0, 3.0]) # shape: (3,)
# Matrix — 2D array
M = np.array([[1, 2, 3],
[4, 5, 6]]) # shape: (2, 3)
# Tensor — nD (phổ biến trong DL)
T = torch.randn(32, 128, 768) # batch × seq_len × d_model
print(f"Tensor shape: {T.shape}") # torch.Size([32, 128, 768])
print(f"Total params: {T.numel():,}") # 3,145,728
Phép nhân ma trận — Trái tim của Neural Network

Mọi linear layer trong DL đều là phép nhân ma trận:
\[\mathbf{z} = \mathbf{W}\mathbf{x} + \mathbf{b}\]Quy tắc shape: (m × k) @ (k × n) → (m × n) — chiều trong phải khớp.
Input x Weight W Output z
(batch, in) × (in, out) = (batch, out)
(32, 784) × (784, 256) = (32, 256)
k ← k phải khớp →
# Linear layer = matmul + bias
batch, d_in, d_out = 32, 784, 256
x = np.random.randn(batch, d_in)
W = np.random.randn(d_in, d_out) * 0.01
b = np.zeros(d_out)
z = x @ W + b # shape: (32, 256)
print(f"Output shape: {z.shape}")
# PyTorch equivalent:
# nn.Linear(784, 256) → tự quản lý W và b
2. Chuẩn (Norms) — Đo “độ lớn” của vector
L1, L2 Norm
\[\|\mathbf{v}\|_1 = \sum_i |v_i| \qquad \|\mathbf{v}\|_2 = \sqrt{\sum_i v_i^2}\]v = np.array([3.0, -4.0, 0.0])
l1 = np.sum(np.abs(v)) # = 7.0
l2 = np.sqrt(np.sum(v ** 2)) # = 5.0
l2_np = np.linalg.norm(v) # = 5.0 (tiện hơn)
print(f"L1 norm: {l1}") # 7.0
print(f"L2 norm: {l2}") # 5.0
Trong AI
| Norm | Ứng dụng |
|---|---|
| L2 | Weight decay / L2 regularization: loss += λ·‖W‖² |
| L1 | Lasso regularization: tạo sparse weights |
| Frobenius | Đo “kích thước” ma trận: ‖M‖_F = √(Σ m²ᵢⱼ) |
| Gradient norm | Gradient clipping: nếu ‖∇‖ > threshold → scale down |

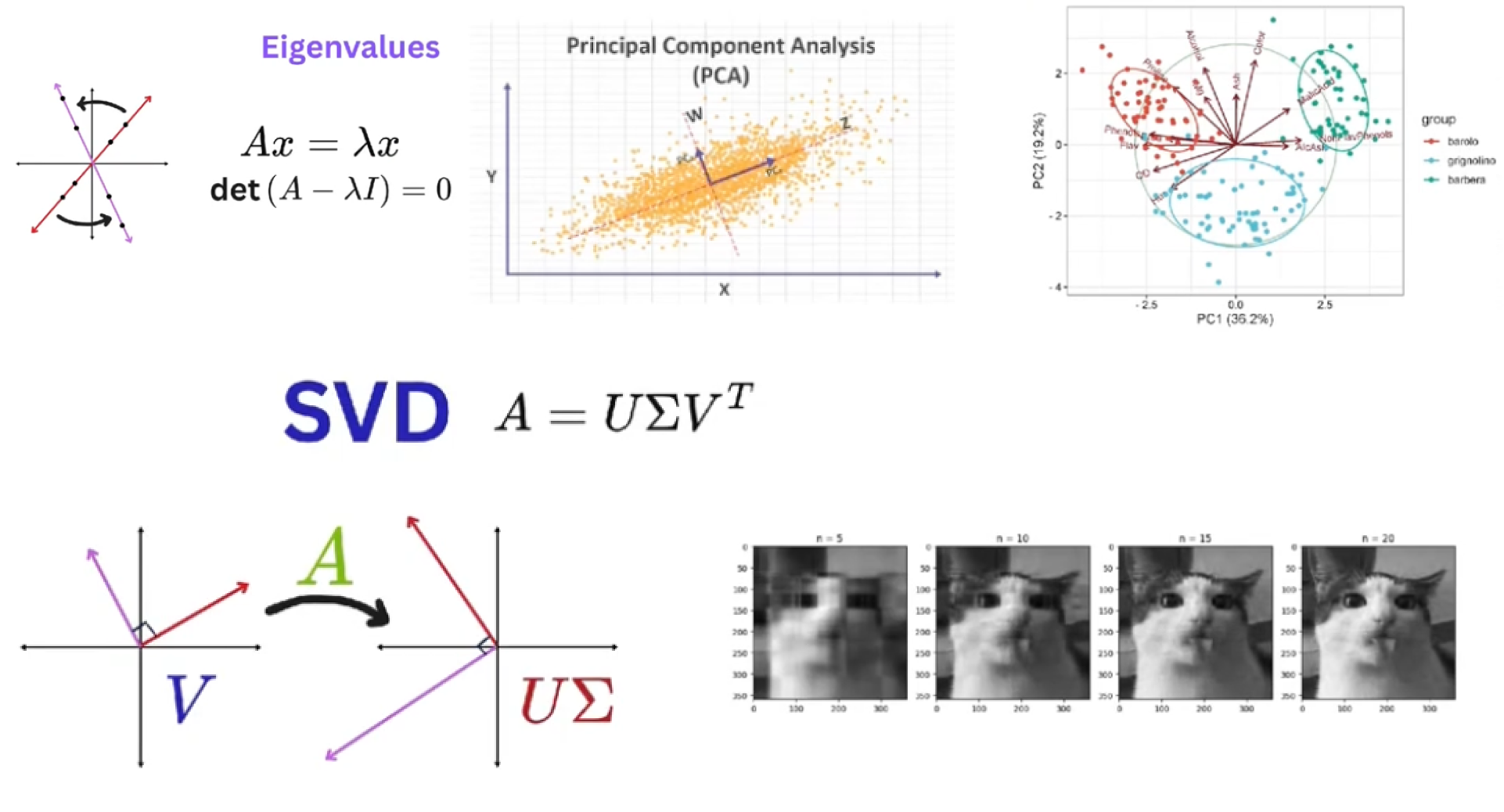

3. Eigenvalues & Eigenvectors — Giá trị riêng & Vector riêng
Intuition
Nhân ma trận $A$ vào một vector thường vừa xoay vừa scale. Nhưng với eigenvector $\mathbf{v}$, phép nhân chỉ scale (không xoay):
\[A\mathbf{v} = \lambda \mathbf{v}\]$\lambda$ là eigenvalue — hệ số scale. $\mathbf{v}$ là eigenvector — hướng bất biến.
Hầu hết vector: Eigenvector:
A A
↗ → ↗ (xoay + scale) → → → (chỉ scale, không xoay)
v Av v λv
Ứng dụng: PCA giảm chiều dữ liệu
from sklearn.decomposition import PCA
import numpy as np
# Dữ liệu 100 điểm, 50 chiều
X = np.random.randn(100, 50)
# PCA dùng eigendecomposition của covariance matrix
pca = PCA(n_components=2)
X_2d = pca.fit_transform(X)
print(f"Original shape : {X.shape}") # (100, 50)
print(f"Reduced shape : {X_2d.shape}") # (100, 2)
print(f"Variance kept : {pca.explained_variance_ratio_.sum():.1%}")
# Phía sau hậu trường:
cov = np.cov(X.T) # covariance matrix (50×50)
eigenvalues, eigenvectors = np.linalg.eig(cov)
# PCA = project data lên eigenvectors có eigenvalue lớn nhất
4. SVD — Phân tách ma trận mạnh nhất
Công thức
Mọi ma trận $M$ đều có thể phân tách:
\[M = U \Sigma V^T\]- $U$: ma trận trực giao (left singular vectors) — “hướng output”
- $\Sigma$: ma trận đường chéo (singular values) — “độ quan trọng”
- $V^T$: ma trận trực giao (right singular vectors) — “hướng input”
M (m×n) = U (m×m) × Σ (m×n) × Vᵀ (n×n)
Σ = diag(σ₁, σ₂, ..., σₖ) với σ₁ ≥ σ₂ ≥ ... ≥ σₖ ≥ 0
Ứng dụng: Nén ảnh + LoRA fine-tuning
import numpy as np
from PIL import Image
# === Nén ảnh bằng SVD ===
# Giả lập ảnh grayscale 256×256
img = np.random.randint(0, 256, (256, 256)).astype(float)
U, sigma, Vt = np.linalg.svd(img, full_matrices=False)
def reconstruct(U, sigma, Vt, k):
"""Giữ lại k singular values đầu tiên (quan trọng nhất)"""
return U[:, :k] @ np.diag(sigma[:k]) @ Vt[:k, :]
for k in [5, 20, 50, 100]:
img_k = reconstruct(U, sigma, Vt, k)
compression = k * (256 + 256 + 1) / (256 * 256)
print(f"k={k:3d}: compression ratio={compression:.1%}")
# k= 5: compression ratio= 4.0% ← rất nén, chất lượng thấp
# k= 20: compression ratio=15.9%
# k= 50: compression ratio=39.7%
# k=100: compression ratio=79.4% ← gần giống gốc
# === LoRA (Low-Rank Adaptation) dùng cùng tư tưởng ===
# Thay vì fine-tune W (d×d = d² params):
# Fine-tune ΔW = A @ B với A:(d×r), B:(r×d), r << d
# r=8: chỉ cần 8*(d+d) = 16d params thay vì d² params!
d, r = 768, 8
A = np.random.randn(d, r) * 0.01 # (768, 8)
B = np.random.randn(r, d) * 0.0 # (8, 768) — init = 0
delta_W = A @ B # (768, 768) — low-rank update
params_full = d * d
params_lora = d * r + r * d
print(f"\nLoRA: {params_lora:,} vs Full: {params_full:,} params")
print(f"Reduction: {params_lora/params_full:.1%}")
# LoRA: 12,288 vs Full: 589,824 params
# Reduction: 2.1% ← giảm 98% số params cần train!
5. Multi-head Attention — Đại số tuyến tính thuần túy
Đây là phép tính cốt lõi của Transformer, 100% là phép nhân ma trận:
\[\text{Attention}(Q, K, V) = \text{softmax}\left(\frac{QK^T}{\sqrt{d_k}}\right)V\]Q: (seq_len, d_k) — Query: "tôi đang tìm gì?"
K: (seq_len, d_k) — Key: "tôi có thông tin gì?"
V: (seq_len, d_v) — Value: "thông tin thực sự"
QKᵀ: (seq_len, seq_len) — attention scores
import torch
import torch.nn.functional as F
import math
def scaled_dot_product_attention(Q, K, V, mask=None):
"""
Attention chuẩn — Vaswani et al. 2017
Q, K, V: (batch, heads, seq_len, d_k)
"""
d_k = Q.shape[-1]
# 1. Tính attention scores
scores = Q @ K.transpose(-2, -1) / math.sqrt(d_k)
# shape: (batch, heads, seq_len, seq_len)
# 2. Mask (optional — cho decoder)
if mask is not None:
scores = scores.masked_fill(mask == 0, float('-inf'))
# 3. Softmax → attention weights
weights = F.softmax(scores, dim=-1)
# shape: (batch, heads, seq_len, seq_len)
# 4. Weighted sum of values
output = weights @ V
# shape: (batch, heads, seq_len, d_v)
return output, weights
# Demo: 2 câu, 4 heads, 8 tokens, d_k=64
batch, heads, seq, d_k = 2, 4, 8, 64
Q = torch.randn(batch, heads, seq, d_k)
K = torch.randn(batch, heads, seq, d_k)
V = torch.randn(batch, heads, seq, d_k)
out, attn = scaled_dot_product_attention(Q, K, V)
print(f"Output shape : {out.shape}") # (2, 4, 8, 64)
print(f"Attention weights : {attn.shape}") # (2, 4, 8, 8)
print(f"Each row sums to 1 : {attn[0,0,0].sum():.4f}") # 1.0000 ✓
6. Embedding — Biến token thành vector
"cat" → lookup index 2847 → row 2847 of E → [0.2, -0.8, 0.1, ..., 0.5]
└──── vector 512 chiều ────┘
import torch
import torch.nn as nn
# Embedding = ma trận E shape (vocab_size, d_model)
vocab_size, d_model = 50000, 512
embedding = nn.Embedding(vocab_size, d_model)
# Token IDs của câu "Hello world"
token_ids = torch.tensor([15496, 995]) # giả sử đây là IDs của GPT-2
# Lookup = indexing vào ma trận E
embeds = embedding(token_ids)
print(f"Token IDs shape : {token_ids.shape}") # (2,)
print(f"Embedding shape : {embeds.shape}") # (2, 512)
# Tại sao embedding works?
# Đơn giản là: embeds = E[token_ids] (matrix row indexing)
# → Backward qua đây = cập nhật đúng hàng trong E tương ứng với token xuất hiện
7. Lỗi Phổ biến & Shape Debugging
import torch
# ❌ Lỗi phổ biến 1: sai thứ tự transpose
A = torch.randn(3, 4)
B = torch.randn(3, 4)
# A @ B → ERROR! (3,4) × (3,4) không hợp lệ
# A @ B.T → OK! (3,4) × (4,3) = (3,3) ✓
# ❌ Lỗi phổ biến 2: broadcasting ngầm gây bug
x = torch.randn(32, 10) # (batch=32, classes=10)
b = torch.randn(10) # bias
# x + b → (32, 10) + (10,) → broadcast → (32, 10) ✓ (đúng)
# Nhưng nếu b = torch.randn(32) →
# x + b → sẽ cần reshape! dễ gây bug
# ✅ Thói quen tốt: luôn assert shape
def matmul_safe(A, B):
assert A.shape[-1] == B.shape[-2], \
f"Shape mismatch: {A.shape} @ {B.shape}"
return A @ B
# ✅ Debug shape từng bước
def forward_debug(x):
print(f"Input: {x.shape}")
W1 = torch.randn(x.shape[-1], 128)
z = x @ W1
print(f"After W1: {z.shape}")
return z
8. Checklist “Đã hiểu Linear Algebra cho AI/ML chưa?”
- Giải thích được tại sao shape của matmul là
(m,k) × (k,n) = (m,n) - Biết khi nào dùng
.Tvs.transpose(-2,-1)trong PyTorch - Hiểu PCA làm gì và SVD liên quan thế nào
- Đọc được code Attention từ shape của Q, K, V
- Debug được shape error bằng cách print từng bước
- Giải thích LoRA dùng low-rank decomposition như thế nào
📚 Tài nguyên
| Tài nguyên | Loại | Ghi chú |
|---|---|---|
| Immersive Linear Algebra | Interactive | Visual tốt nhất, free |
| 3Blue1Brown — Essence of Linear Algebra | Video | 15 tập, cực kỳ intuitive |
| Gilbert Strang — MIT 18.06 | Lecture | Kinh điển, free trên YouTube |
| einops | Thư viện | Thao tác tensor rõ ràng hơn |
